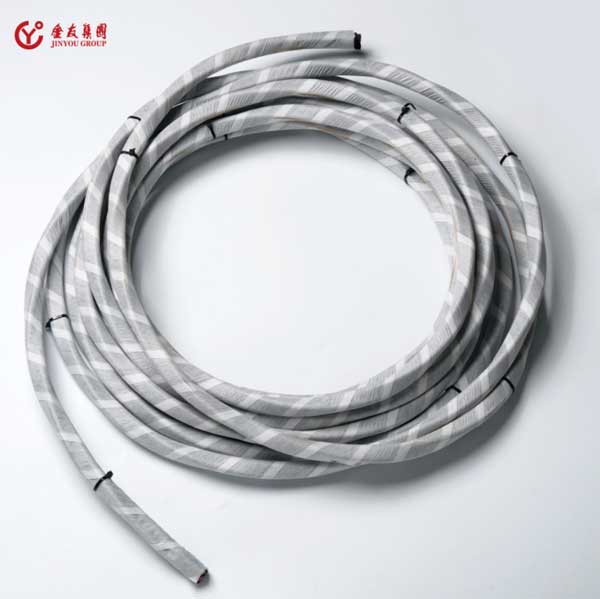

日标CVT电缆3X5.5

1、产品说明：

一般用于在干燥或潮湿的环境中进行电力分配，适用于多种安装方式，如可露天安装、通过管道安装或直埋于地下。常用于工业领域、建筑工程、电力系统以及交通运输等场景，例如工厂自动化设备、电力输送和分配系统、铁路、地铁、船舶等交通工具的电力传输和控制系统等。该标准电缆具有高绝缘电阻、防潮、耐油、耐高温、耐臭氧/耐紫外线等特点。

1、Product description

Generally used for power distribution in dry or wet environments, suitable for a variety of installation methods, such as open installation, pipeline installation or buried in the ground. It is often used in industrial fields, construction engineering, power systems, and transportation scenarios, such as factory automation equipment, power transmission and distribution systems, railways, subways, ships and other vehicles of power transmission and control systems. The standard cable has the characteristics of high insulation resistance, moisture resistance, oil resistance, high temperature resistance, ozone/ultraviolet resistance, etc.

2、名称及型号 Name and model

名称 Name: 600V交联聚乙烯绝缘电缆

型号规格 Modle specifications: CVT，2～4芯，2~22mm²；

电压等级 Voltage level：600V。

执行标准 Implementation of standards:JIS C 3605：2002

3、产品特性 Product Features

3.1 导体最高工作温度 Maximum operating temperature of conductor：90℃

3.2 试验电压 The test voltage：导体标称截面积2mm²-8mm²，测试电压为 1500V绝缘不发生击穿

导体标称截面积14mm²-22mm²，测试电压为 2500V绝缘不发生击穿

3.3 弯曲半径 Bending radius： 弯曲半径≥10D；

3.4 高绝缘电阻、防潮、耐油、耐高温、耐臭氧/耐紫外线： High insulation resistance,  moisture-resistant, oil-resistant, high temperature resistant, ozone/ultraviolet light resistant.

3.5 绝缘抗张强度，伸率：≥10MPa；≥200％

3.6：使用寿命 Life：25 年（years）

3.7：短路温度 Short circuit temperature：5s，250℃

高绝缘电阻、防潮、耐油、耐高温、耐臭氧/耐紫外线： High insulation resistance, moisture-resistant, oil-resistant, high temperature resistant, ozone/ultraviolet light resista
